Kuefler

History

Gerald Kuefler remembers that when his father was planning on building this barn he was very particular with respect to what he wanted. Many of his father’s friends recommended that he should not build a large barn since they were starting to become obsolete. However, Mr. Kuefler was steadfast in his desire to have a milking barn with loft space for his feed. The barn was built in 1956 by neighbours and with the help of Freddie Kroetsch of Heisler, Alberta. Freddie had a special pattern that allowed him to create a rafter for an arched roof. This design was very unique and allowed farmers to build arched-roofed barns before glued-laminated timbers were available. The rafters meet in the peak of the roof where two large beams support the lateral weight. Gerald Kuefler mentioned that raising the beams would have been quite the feat since there were no machine lifts at the time.

The barn has built-in stations for milking cows and a vacuum system for the milking machine. There are twelve stalls with stanchions on the western side of the barn and six stalls with stanchions on the eastern side of the barn. The remaining area on the eastern side of the barn is penned space which was used for pigs. The barn was built using frame construction and platform framing.

Kuefler, Gerald. Personal communication. 14 Jul. 2016.

IMG_5509

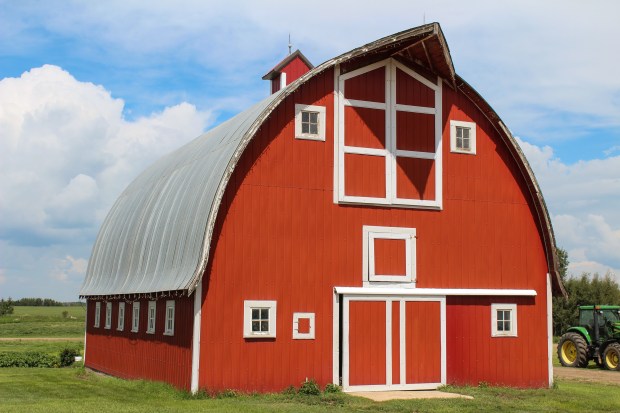

This frame shows the southern face of the barn and a portion of the western face of the barn.

IMG_5511

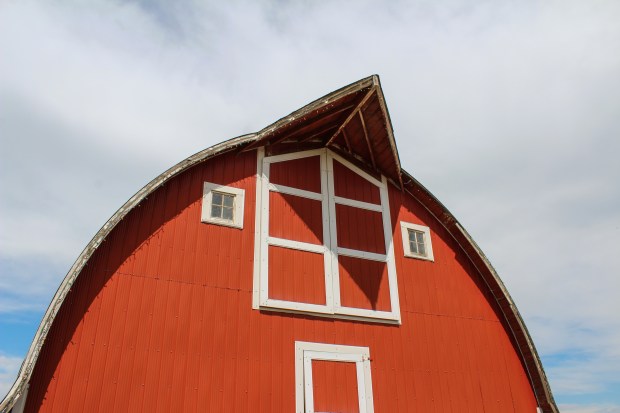

The south face of the barn has a hay hood even though no hay track was ever installed in the barn.

IMG_5563

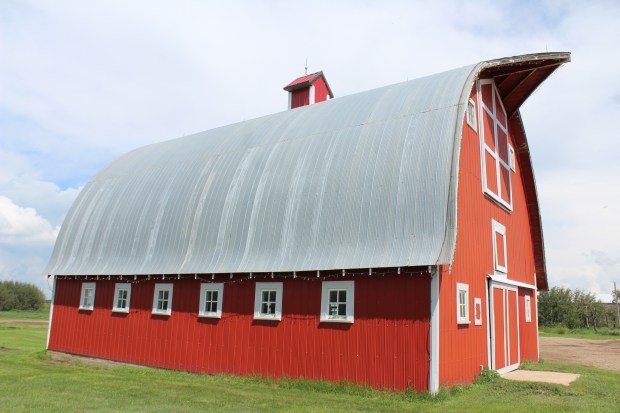

The western half of the roof.

IMG_5566

The western half of the roof.

IMG_5567

This frame shows the northern face of the barn. The ground level door on this face is the one the dairy cows would have been led through for milking within the barn.

IMG_5569

The eastern half of the roof. The foundation for this barn is concrete, which was mixed and poured by hand.

IMG_5572

This frame shows the eastern half of the barn’s roof and the southern face of the barn.

IMG_5512

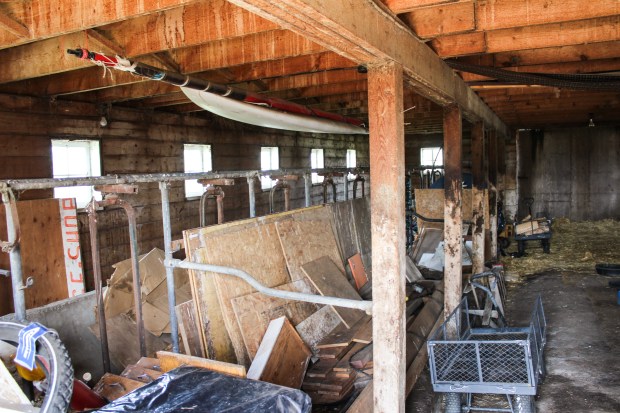

The western half of the barn has stalls made of metal and metal stanchions. The company that built them was called Bettie Equipment and it was out of Ontario.

IMG_5517

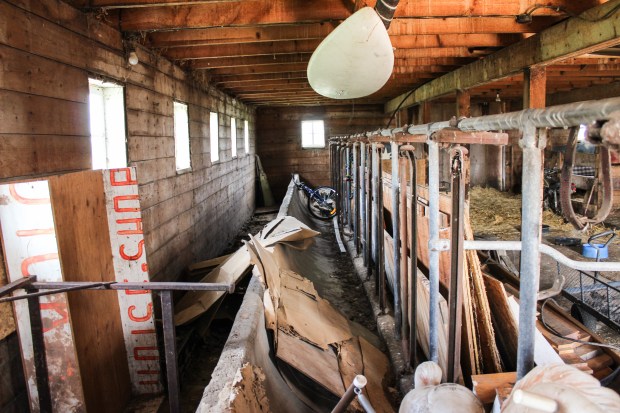

The cement for the floor, foundation, and curved feeding troughs was all hand mixed and hand poured.

IMG_5515

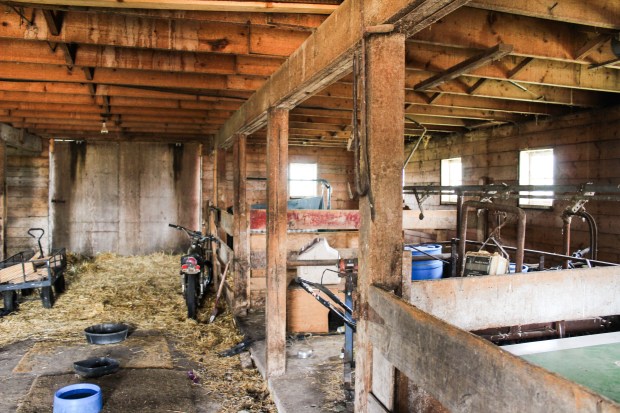

The eastern side of the barn was originally only wooden pens. The Kueflers created six more stanchions later in order to milk more cows.

IMG_5519

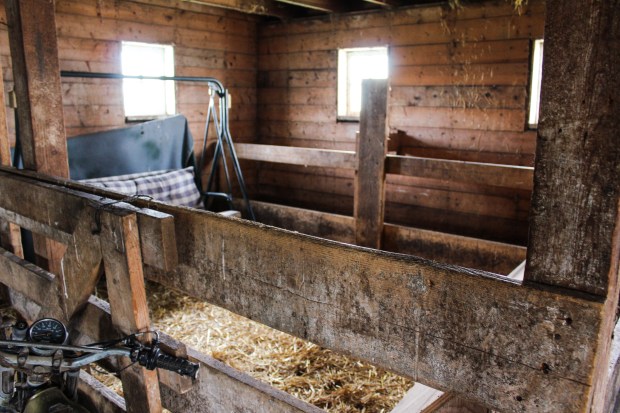

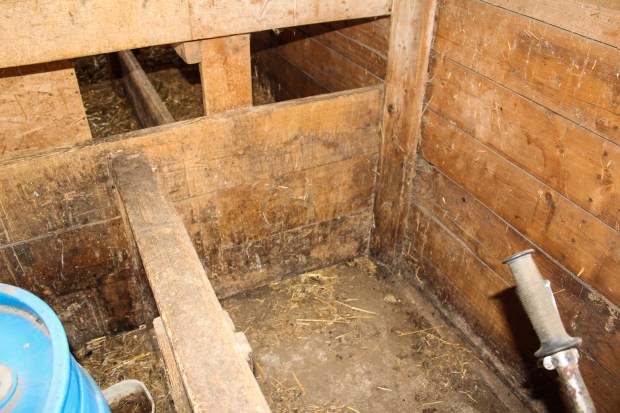

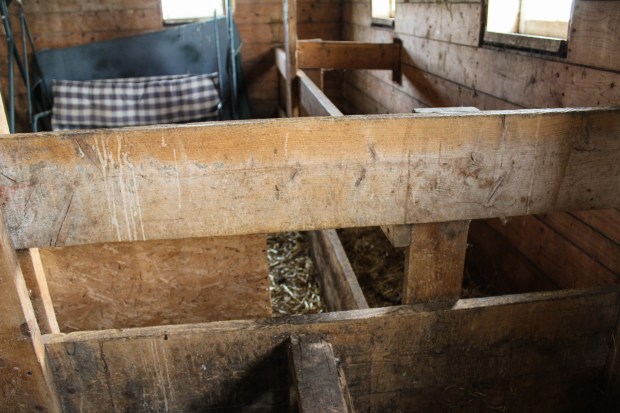

There are still two wooden pens with wooden mangers in the eastern half of the barn.

IMG_5528

IMG_5524

The eastern stanchion stalls have a cement walkway in front of them

IMG_5537

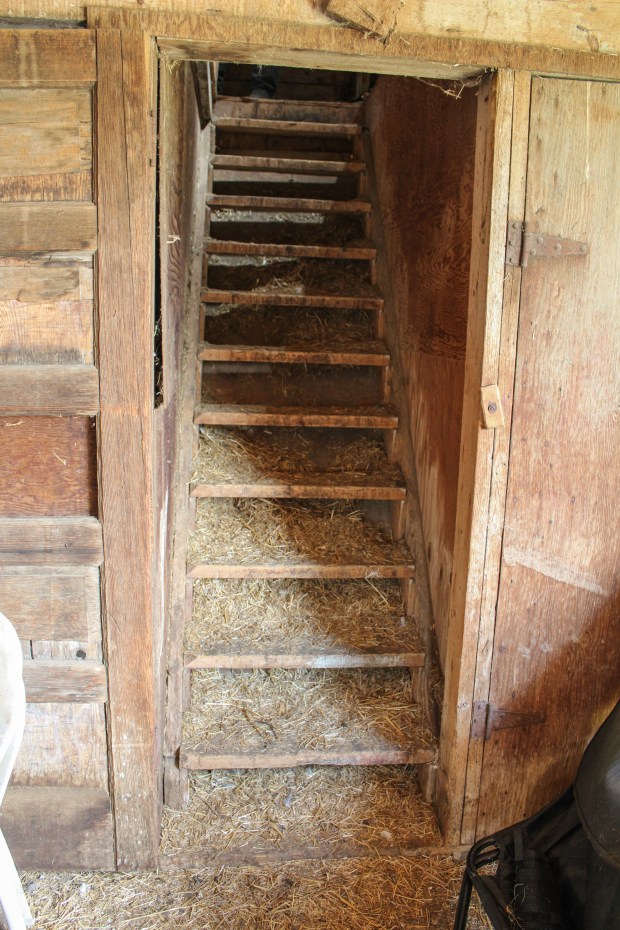

Near the south door of the barn, is the chop storage room and the staircase to the loft.

IMG_5532

IMG_5538

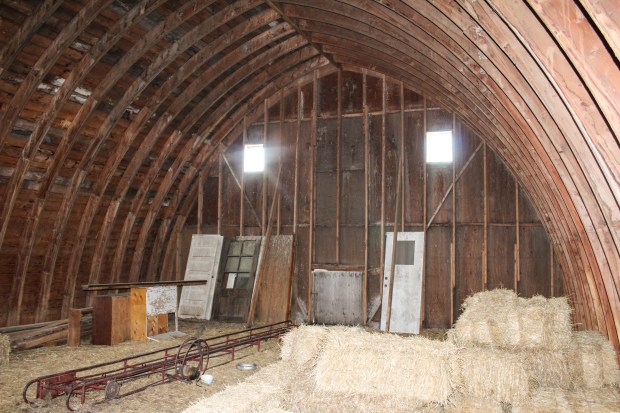

The arched rafters meet at a large double beam in the peak of the roof.

IMG_5556

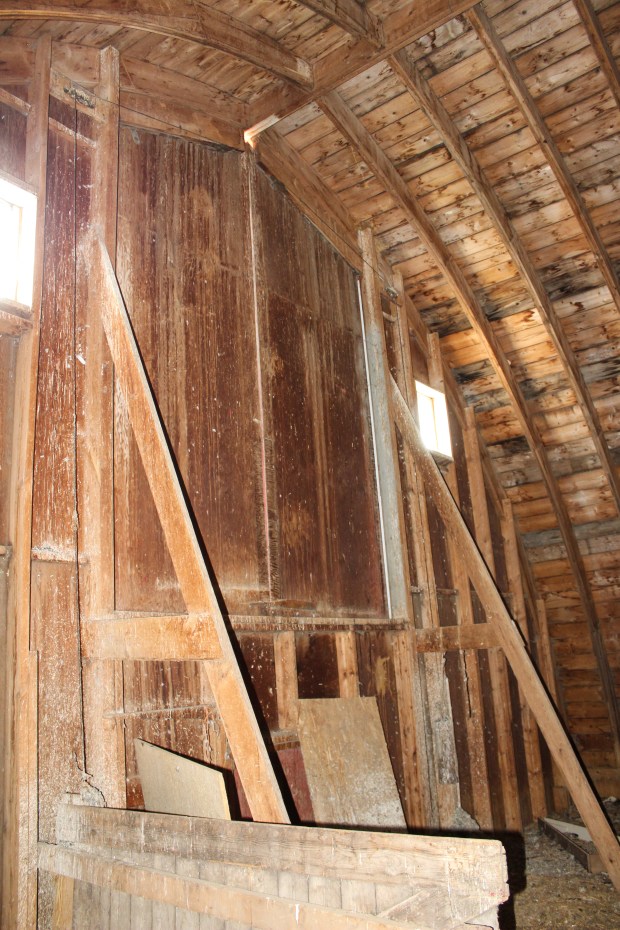

This frame shows the southern loft door.

IMG_5544

The rafters for this barn as especially unique. They were cut from a pattern that Freddie Kroetsch had made.

IMG_5548

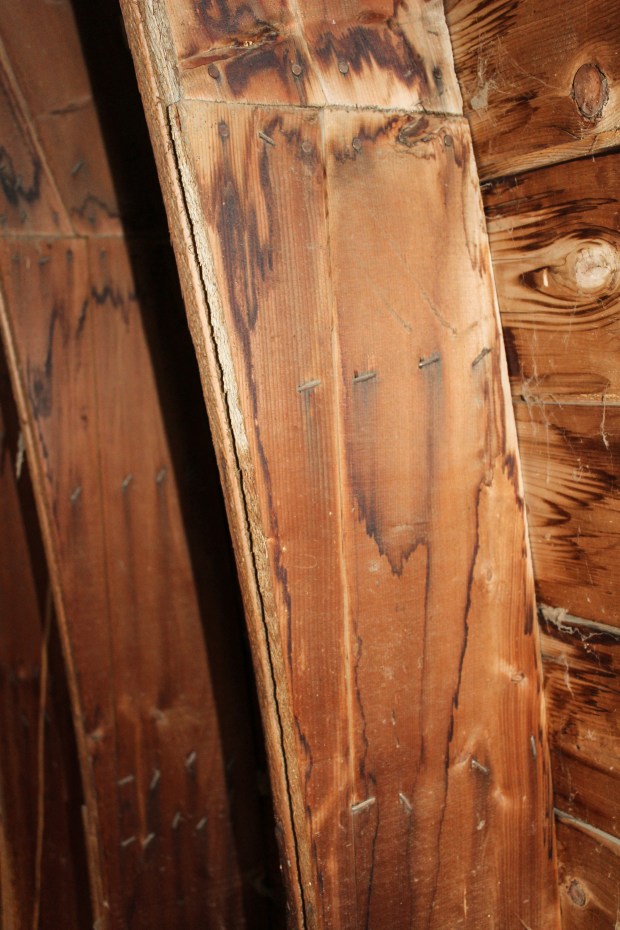

The rafters are made from two pieces of foot long lumber. The one timber is a whole piece while the other timber is cut with a curve and nailed onto either side of the first timber.

IMG_5552

The rafters are created by nailing three of the foot-long pieces together.

Location

52.507497, -111.898461                                        SW 12-41-14 W4

Characteristics

Barn Condition: Good

Construction Date: 1956

Features: Hay hood, cupola, lightning rod

Roof Shape: Arched

Paint: Red with white trim

Decorations: No names of dates

Roof Covering: Metal

Siding: Metal

Foundation: Concrete
